1.Nominal pressure:1.6Mpa
2.Working medium: Water, Oil
3.Working temperature:-20°C≤ t ≤ 180°C
4.Thread conform to ISO 228

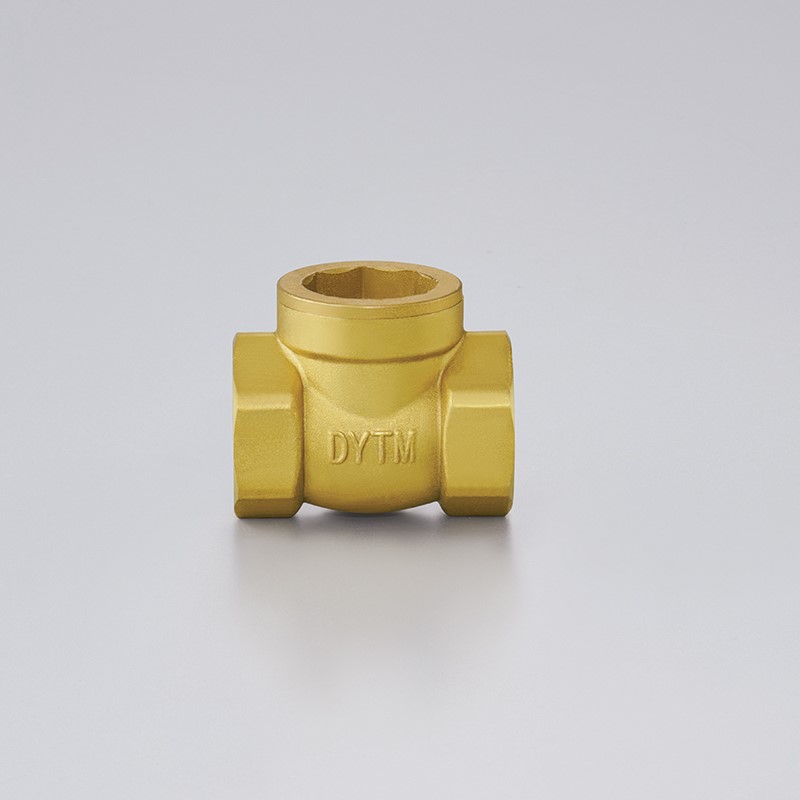

The Brass Swing Check Valve Female/Female is a one-way valve mainly used to prevent the backflow of media in pipeline systems. It belongs to the swing check valve type, in which the disc rotates relative to the seat to achieve opening and closing effects.Brass Swing Check Valves are typically installed on horizontal pipelines, and the flow direction of the medium must be consistent with the arrow direction on the valve body to ensure normal flow. This type of valve has good sealing performance but relatively high flow resistance, making it suitable for clean media. It is not recommended for working conditions with high viscosity or containing solid particles. The Brass Swing Check Valve is made of brass, which has good corrosion resistance and mechanical properties, and is suitable for various media such as water, steam, and oil products.
